PTV Insulated Pin Terminal
Introduction
- Model: PTV
- Material: Terminal: Copper / Insulation: vinyl(pvc)
- Surface: Electro tin plated
Specification
Conductor Area: 0.51.5mm² / 2216AWG
Maximum Current: Imax=19A
Material: Copper
Material Thickness: 0.75mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

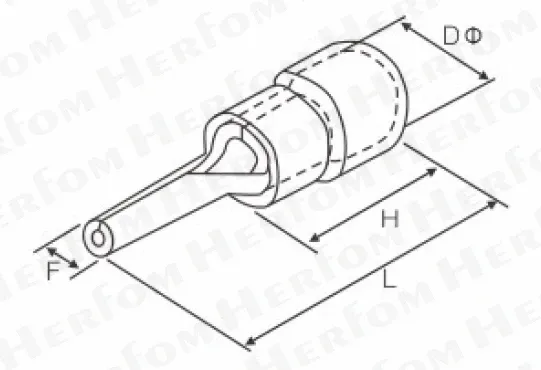

| Item | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||
| PTV 1.25-9 | 1.9 | 19.0 | 10.0 | 4.3 | Red |
| PTV 1.25-10 | 1.9 | 20.0 | 10.0 | 4.3 | Red |
| PTV 1.25-12 | 1.9 | 22.0 | 10.0 | 4.3 | Red |
| PTV 1.25-13 | 1.9 | 23.0 | 10.0 | 4.3 | Red |
| PTV 1.25-18 | 1.9 | 28.0 | 10.0 | 4.3 | Red |
| Other Size | Please contact sales |
Conductor Area: 1.52.5mm² / 1614AWG
Maximum Current: Imax=27A
Material: Copper
Material Thickness: 0.8mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||
| PTV 2-9 | 1.9 | 19.0 | 10.0 | 4.9 | Blue |
| PTV 2-10 | 1.9 | 20.0 | 10.0 | 4.9 | Blue |
| PTV 2-12 | 1.9 | 22.0 | 10.0 | 4.9 | Blue |
| PTV 2-13 | 1.9 | 23.0 | 10.0 | 4.9 | Blue |
| PTV 2-18 | 1.9 | 28.0 | 10.0 | 4.9 | Blue |
| Other Size | Please contact sales |
Conductor Area: 2.54mm² / 1412AWG
Maximum Current: Imax=36A
Material: Copper
Material Thickness: 1.0mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||
| PTV 3.5-10 | 2.8 | 20.0 | 13.0 | 6.2 | Black |
| PTV 3.5-13 | 2.8 | 25.0 | 13.0 | 6.2 | Black |
| Other Size | Please contact sales |
Conductor Area: 46mm² / 1210AWG
Maximum Current: Imax=48A
Material: Copper
Material Thickness: 1.0mm
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||
| PTV 5.5-13 | 2.8 | 25.5 | 13.0 | 6.7 | Yellow |
| PTV 5.5-18 | 2.8 | 30.5 | 13.0 | 6.7 | Yellow |
| Other Size | Please contact sales |
