SNB Non-Insulated Spade Terminal
Introduction
- Model: SNB
- Material: Copper
- Surface: Outer tin plating
Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.

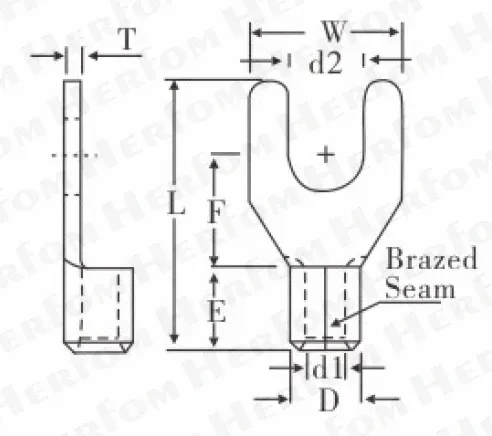

| Item | USA Screw | Screw dia d2(mm) | W(mm) | L(mm) | F(mm) | E(mm) | D(mm) | d1(mm) | T(mm) | WIRE RANGE AWG/mm² |
|---|---|---|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | |||||||||
| SNB1.25-3 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB1.25-3.5S | #6 | 3.7 | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB1.25-3.5L | #6 | 3.7 | 6.4 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB1.25-4S | #6 | 4.3 | 6.4 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB1.25-4M | #8 | 4.3 | 7.2 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB1.25-4L | #8 | 4.3 | 8.1 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB1.25-5S | #10 | 5.3 | 8.1 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB1.25-5L | #10 | 5.3 | 9.5 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB1.25-6S | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB1.25-6L | 1/4 | 8.4 | 12.0 | 22.0 | 11.0 | 4.8 | 3.4 | 1.7 | 0.75 | 22 |
| SNB2-3 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB2-3.5S | #6 | 3.7 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB2-3.5L | #6 | 3.7 | 6.0 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB2-4S | #6 | 4.3 | 6.4 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB2-4M | #8 | 4.3 | 7.2 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB2-4L | #8 | 4.3 | 8.1 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB2-5S | #10 | 5.3 | 8.1 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB2-5L | #10 | 5.3 | 9.5 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB2-6S | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB2-6L | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| SNB3.5-4 | #8 | 3.2 | 5.7 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 | 1.0 | 14 |
| SNB3.5-5S | #10 | 4.3 | 8.0 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 | 1.0 | 14 |
| SNB3.5-5L | #10 | 5.3 | 8.0 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 | 1.0 | 14 |
| SNB3.5-6 | 1/4 | 6.4 | 12.0 | 21.5 | 12.1 | 6.0 | 5.0 | 3.0 | 1.0 | 14 |
| SNB5.5-3.5 | #6 | 3.7 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 | 1.0 | 12 |
| SNB5.5-4S | #8 | 4.3 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 | 1.0 | 12 |
| SNB5.5-4L | #8 | 4.3 | 9.0 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 | 1.0 | 12 |
| SNB5.5-5 | #10 | 5.3 | 9.0 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 | 1.0 | 12 |
| SNB5.5-6S | 1/4 | 6.4 | 9.0 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 | 1.0 | 12 |
| SNB5.5-6L | 1/4 | 6.4 | 12.0 | 25.5 | 12.0 | 6.8 | 5.6 | 3.4 | 1.0 | 12 |
| SNB5.5-8 | 5/16 | 8.4 | 14.0 | 24.5 | 11.5 | 6.8 | 5.6 | 3.4 | 1.0 | 12 |
| SNB8-4 | #8 | 4.3 | 8.7 | 23.0 | 6.0 | 8.5 | 7.2 | 4.5 | 1.2/1.4/1.7 | 8 AWG / 8mm² |
| SNB8-5 | #10 | 5.3 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | 1.2/1.4/1.7 | 8 AWG / 8mm² |
| SNB8-6 | 1/4 | 6.4 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | 1.2/1.4/1.7 | 8 AWG / 8mm² |
| SNB8-8 | 5/16 | 8.4 | 14.5 | 28.0 | 8.3 | 8.5 | 7.2 | 4.5 | 1.2/1.4/1.7 | 8 AWG / 8mm² |
| SNB14-6 | 1/4 | 6.4 | 12.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 1.2/1.4/1.7 | 8 AWG / 8mm² |
| SNB14-8 | 5/16 | 8.4 | 14.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 1.2/1.4/1.7 | 8 AWG / 8mm² |
| SNB22-8 | 5/16 | 8.4 | 14.0 | 34.5 | 9.0 | 12.0 | 12.0 | 11.5 | 1.2/1.4/1.7 | 8 AWG / 8mm² |
| Other Size | Please contact sales |
