PTN Non-Insulated Pin Terminal
Introduction
-
Material: Copper
-
Surface: Outer tin plating

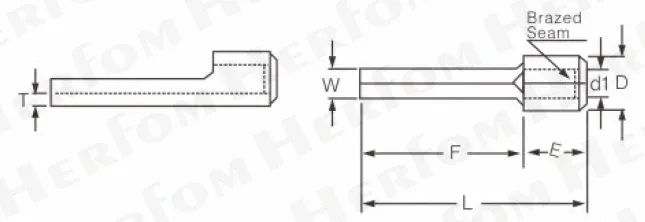

Specification
The following table is the latest size. These are the regular sizes.
If you need more size, please contact us.
| Item | W (mm) | L (mm) | E (mm) | D (mm) | d1 (mm) | T (mm) | WIRE RANGE AWG/mm² |
|---|---|---|---|---|---|---|---|
| Other Size | Please contact sales | ||||||
| PTN1.25-9 | 1.9 | 13.8 | 4.8 | 3.4 | 1.7 | 0.7 | 22 |
| PTN1.25-10 | 1.9 | 14.8 | 4.8 | 3.4 | 1.7 | 0.7 | 22 |
| PTN1.25-12 | 1.9 | 16.8 | 4.8 | 3.4 | 1.7 | 0.7 | 22 |
| PTN1.25-13 | 1.9 | 17.8 | 4.8 | 3.4 | 1.7 | 0.7 | 22 |
| PTN1.25-18 | 1.9 | 22.8 | 4.8 | 3.4 | 1.7 | 0.7 | 22 |
| PTN2-9 | 1.9 | 13.8 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| PTN2-10 | 1.9 | 14.8 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| PTN2-12 | 1.9 | 16.8 | 4.8 | 4.1 | 2.3 | 0.8 | 16 |
| PTN3.5-10 | 2.8 | 14.8 | 6.0 | 5.0 | 3.0 | 1.0 | 14 |
| PTN3.5-13 | 2.8 | 19.8 | 6.0 | 5.0 | 3.0 | 1.0 | 14 |
| PTN5.5-13 | 2.8 | 19.8 | 6.0 | 5.6 | 3.4 | 1.0 | 12 |
| Other Size | Please contact sales |
